Introduction

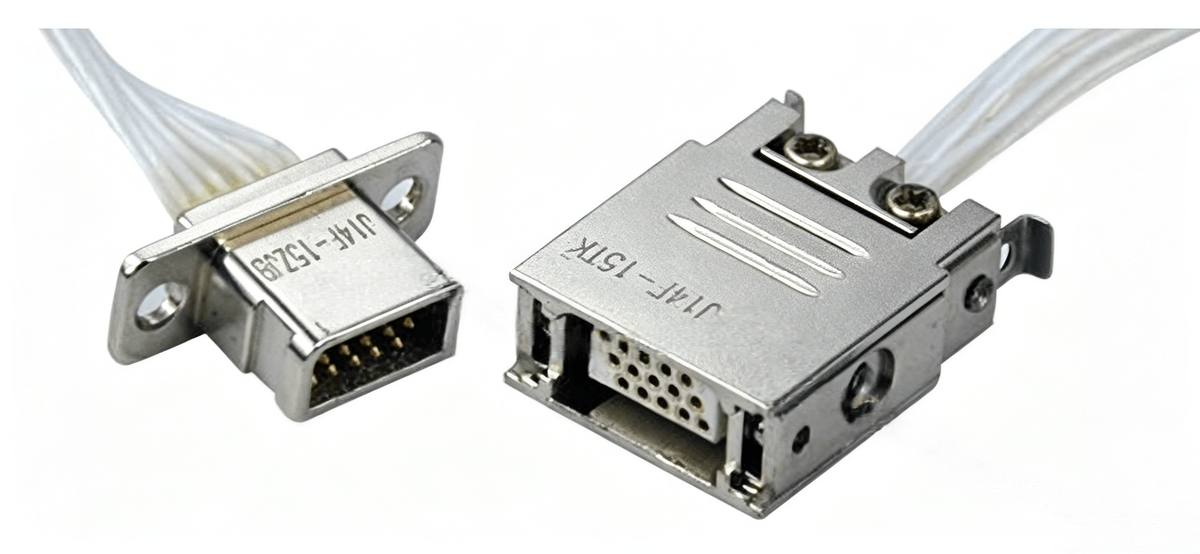

The J14F Series Rectangular Electrical Connector represents a pinnacle of engineering excellence designed to meet the demanding requirements of modern electrical interconnection systems. Tailored for industrial, automotive, telecommunications, and renewable energy applications, this connector series delivers exceptional reliability, durability, and versatility. Engineered with precision and manufactured to the highest standards, the J14F Series ensures secure and efficient power and signal transmission in even the most challenging environments.
Key Technical Specifications and Features
1. Robust Construction
- Housing Material: Manufactured from high-grade, corrosion-resistant thermoplastic that withstands harsh chemicals, UV exposure, and extreme temperatures.
- Contacts: Precision-engineered contacts made from superior conductive materials (e.g., phosphor bronze or beryllium copper) with gold or silver plating options for minimal resistance and maximum conductivity.
- Ingress Protection: Rated IP67 (standard) or IP68/IP69K (optional), ensuring dust-tight and. Electrical Performance
- Voltage Rating: Up to 500V AC/DC.
- Current Rating: Supports currents up to 30A per contact, scalable based on configuration.
- Contact Resistance: ≤10mΩ initially and stable over lifecycle.
- Insulation Resistance: ≥1000MΩ at 500V DC.
3. Environmental Resilience
- Temperature Range: Operates reliably from -55°C to +125°C.
- Vibration and Shock Resistance: Compliant with MIL-STD-202 and IEC 60068-2-6/27 standards, ideal for automotive and aerospace applications. Flame Retardancy: Meets UL94 V-0 standards, ensuring safety in high-risk environments.
4. Versatile Configurations
- Contact Arrangements: Available in 2 to 48 positions, supporting mixed signal/power configurations.
- Mounting Options: Panel mount, cable mount, or PCB mount variants.
- Locking Mechanisms: Secure bayonet, screw, or snap-in locking systems to prevent accidental disconnection.
5. Ease of Installation
- Tool-Free Assembly: Features intuitive, tool-free contact insertion for field serviceability.
- Color-Coding: Polar.
- Compatibility: Interfaces seamlessly with industry-standard rectangular connector formats.
Applications Across Industries
The J14F Series excels in environments requiring dependable, high-performance connectivity:
- Industrial Automation: Control cabinets, robotics, and machinery where vibration and dust are concerns.
- Electric Vehicles (EVs): Battery management systems (BMS), charging ports, and powertrain components.
- Telecommunications: Base stations, server racks, and data centers demanding EMI shielding.
- Renewable Energy: Solar inverters, wind turbine controls, and battery storage systems.
- Medical Equipment: Critical devices requiring fail-safe connections and sterilization compatibility.
Why Choose the J14F Series?
- Reliability by Design: Advanced sealing and contact technologies ensure longevity even in corrosive or high-humidity settings.
- Customization Flexibility: Tailored solutions available for unique pinouts, shielding requirements, or hybrid signal/power needs.
- Global Compliance: Certifications include UL, CE, RoHS, REACH, and ISO 9001:2015, guaranteeing international market access.
- Reduced Total Cost of Ownership: High mating cycles (>5000 cycles) minimize maintenance and replacement costs.
- Future-Proof Engineering: Supports high-speed data transmission (e.g., Ethernet, CAN bus) alongside power delivery.
Conclusion
The J14F Series Rectangular Electrical Connector is more than a component—it’s a critical enabler of system reliability and performance. Whether deployed in smart factories, next-gen vehicles, or green energy infrastructure, its combination of ruggedness, electrical efficiency, and adaptability makes it the optimal choice for engineers seeking uncompromising quality. Partner with us to integrate J14F connectors into your projects and experience connectivity that endures.
